DJI

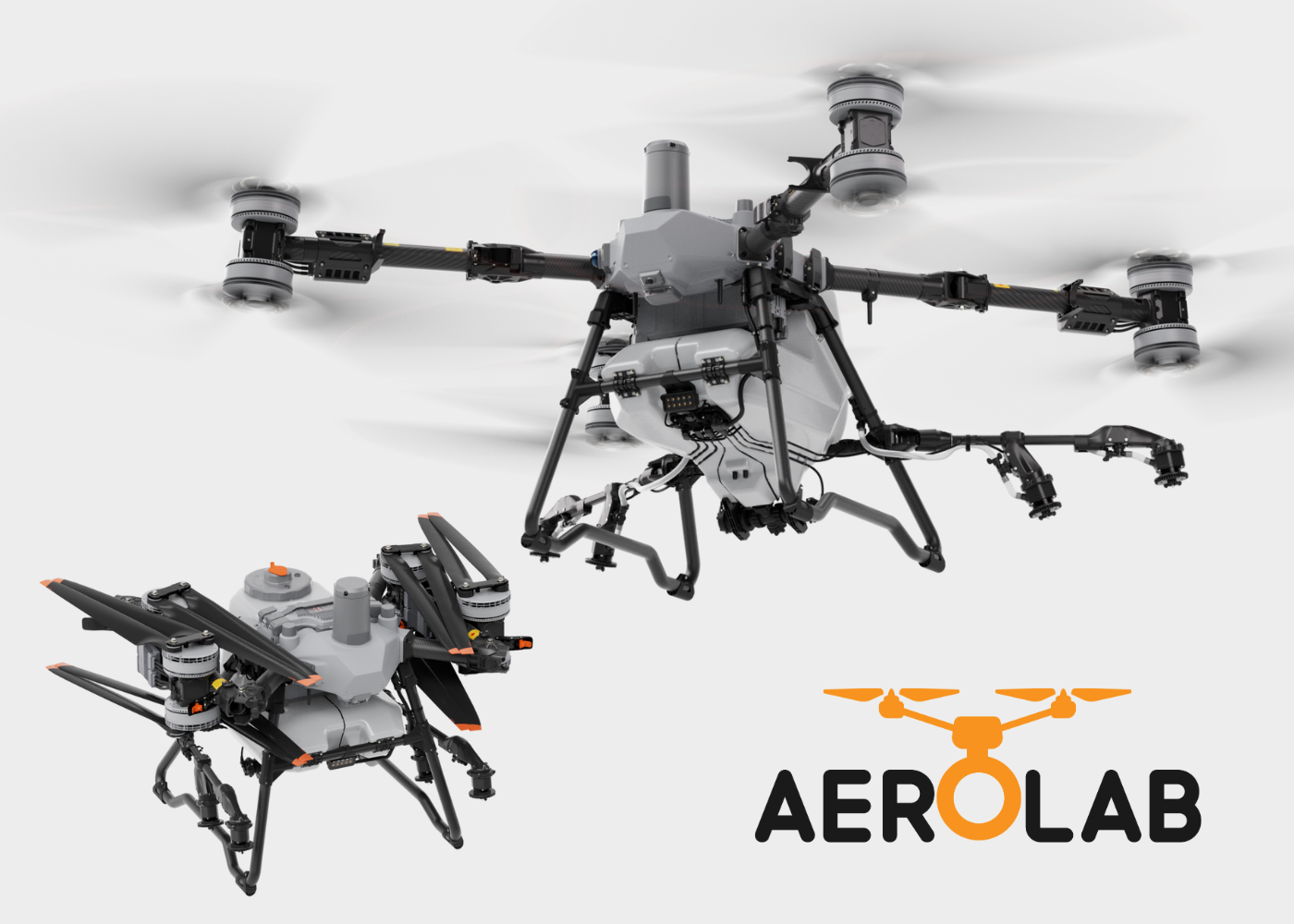

DJI T100 AGRAS Agricultural Spray Drone Kit
DJI T100 AGRAS Agricultural Spray Drone Kit
The T100 is here to replace your big expensive equipment.

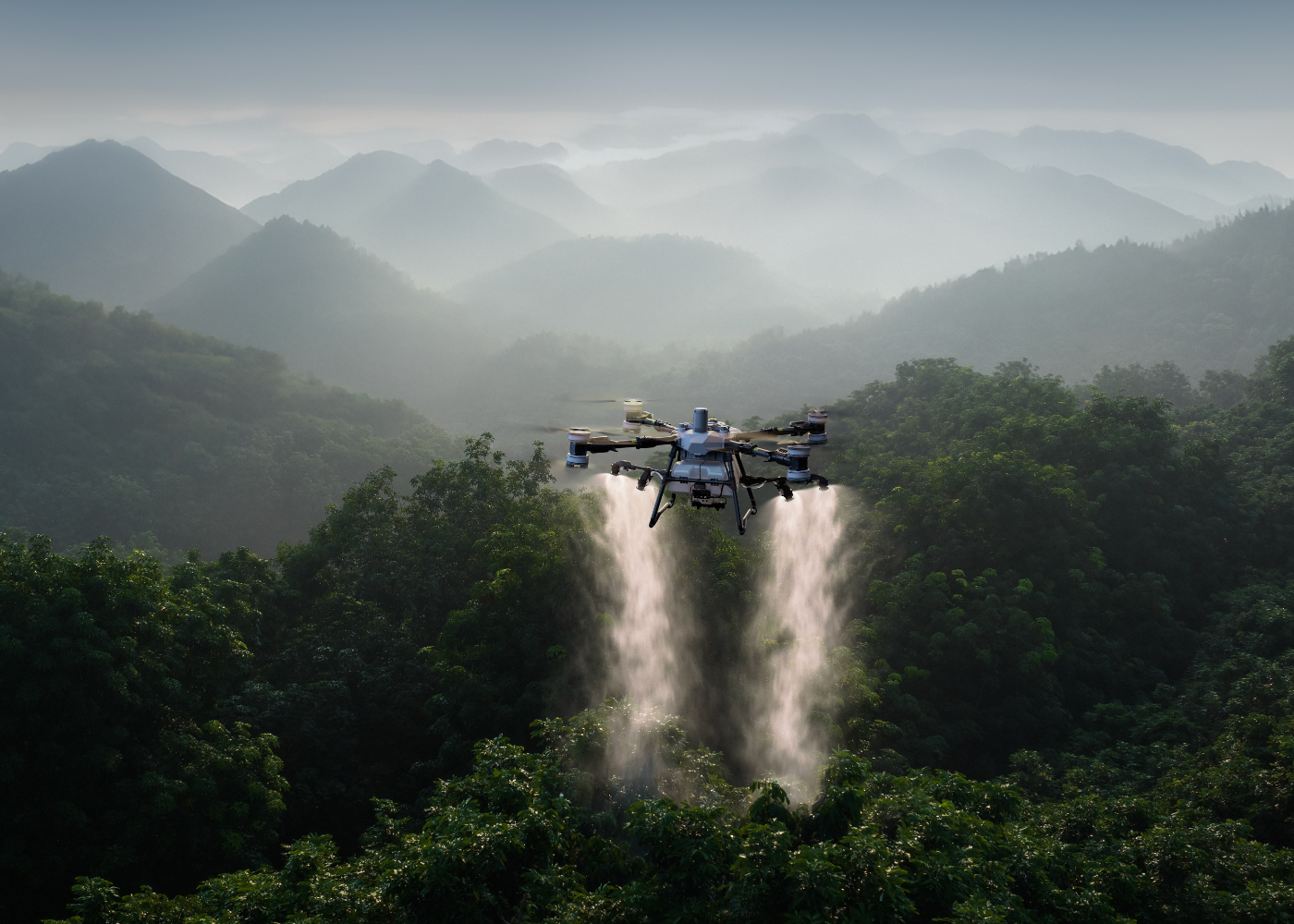

The groundbreaking T100 is the biggest Agricultural Drone released. This drone is for the big jobs, with all the brains to get the job done. There is not another drone that is even close to competing with this unit. Its operational efficiency is doubled, supporting multiple application scenarios, including spraying, spreading, and lifting tasks.
The T100 has an enormous 100L spraying tank, and a pump output of 40L/min - this drone will match to performance of any agricultural rig available. Forget the tractor, let Aerolab get you into a Spray drone.
With a maximum spreading payload of 150L, and a new revolutionised screw auger system that has increased the spreading output to 400kg/min. A 270% increase from its previous generation. The T100 will spread material faster and more accurately than any other alternative. I can guarantee the T100 will double your efficiency in the field. There is finally a drone that matches the rates needed for Urea spreading.

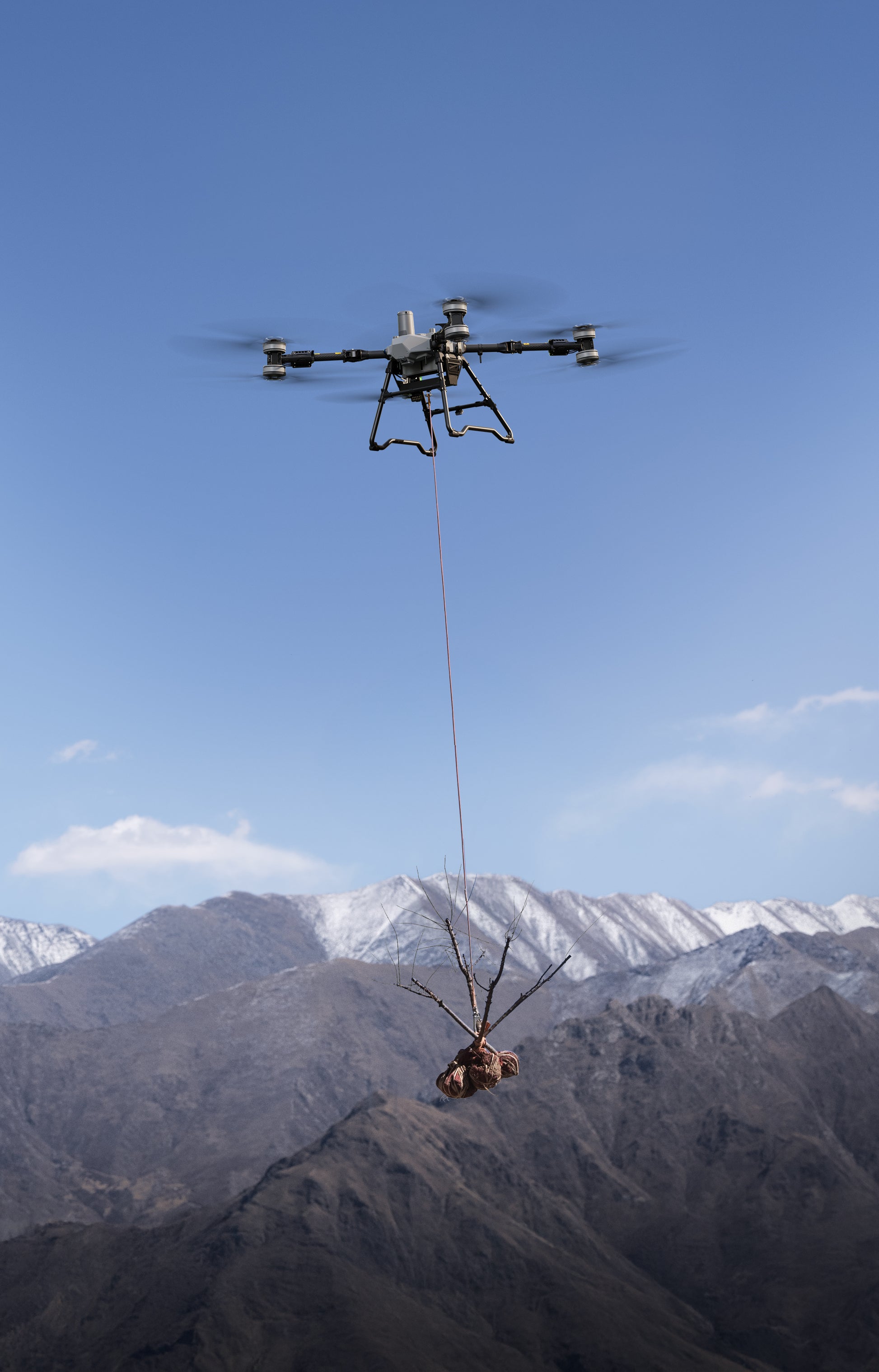

The 100kg lifting unit is also a major push in the right direction, the drone that does it all. The potential this mechanism opens for farmers and contractors across New Zealand.
Not to mention the T100 is equipped with advanced technologies, including a new LiDAR, millimeter-wave radar, and a Penta-Vision system. These features enable comprehensive environmental awareness, allowing for precise obstacle detection. Featuring industry-leading safety systems and advanced algorithms, it delivers unparalleled safety performance and an intelligent operational experience. You can put your trust in this aircraft.
We are taking orders now!
Get your DJI T100.
Call Murdoch on 0223125408 or fill out the form below to secure your DJI T100with Aerolab!
Learn more about the DJI T100.
Features
Heavy Payload: Ability to carry 100 L Spraying, 150 L Spreading, or 100 kg Lifting.
All Scenario Adaptability: Full Autonomous and Manual Flight capable of tackling any environment.
High Flow Rate: Enhance agricultural work with Industry leading 40 L per minute spraying and 400 KG per minute spreading.
Signal Stability: Full offline capable operations in some of New Zealand's most remote locations.
Safety System 3.0: Industry-leading LiDAR, Penta-Vision, and millimetre-wave radar with 360° multidirectional obstacle sensing and avoidance.
Spreading System 4.0 (Upgradable): Screw Feeder discharge structure with doubled load capacity and 270% increased flow rate.
Our Kit Includes
- DJI AGRAS T100 × 1
- DJI TKPL 2 Remote Controller × 1
- DJI DB2160 Intelligent Flight Battery × 3
- DJI T100 Spraying System with Air-Cooled Heat Sink × 1
- DJI AGRAS T100 150L Spreading System × 1
- DJI AGRAS T100 100L Spray System × 1 (Optional)
- DJI T100 Dual Battery Heavy Lift Kit
- DJI 65W Portable Charger (NZ) × 1
- DJI WB37 Intelligent Battery × 1
- DJI Smartfarm for Web - 1 Year Free Trial × 1
One of Three Charging Options:
- DJI C10000 Smart Charger x 1 (Slow charge)
- DJI C12000 Smart Charger × 1 (Fast charge)
- D14000iE Generator x 1 (Most efficient)
Why DJI T100?
Built on twelve years of agricultural drone development, the T100 is DJI's most capable spraying platform yet. It carries 100 L of spray, 150 L of granular material, or lifts 100 kg of cargo — all on a single airframe. A 40 L/min flow rate with four sprinklers and an effective spray width of up to 13 m means more hectares covered per battery, and the new Spreading System 4.0 doubles the load capacity of its predecessor with a 270% increase in discharge rate. Safety System 3.0 combines LiDAR, millimetre-wave radar, and Penta-Vision for 360° obstacle detection at speeds up to 13.8 m/s — so it handles complex terrain as confidently as open paddocks.
Certifications Required
As part of the Aerolab service we work with you to ensure your business and pilot(s) get all the certifications required to operate your drone successfully.
Here is the list of Qualifications the Pilot requires to to operate the DJI T100:
- RPAS Pilot Certification (Part 102)
- Chemical Handling Qualification
- UAV Ag Rating
- Operational Competency Assessment (OCA)
The Pilot will also need to be flying under a Civil Aviation Authority (CAA) approved Part 102 Unmanned Aircraft Operating Certificates (UAOC) issued to a Limited Liability Company.
Click Here to learn more about compliance.
Product Specifications
Aircraft
Weight: 75 kg (spray, 2 nozzles) / 77 kg (spray, 4 nozzles) / 75 kg (spreading) / 65 kg (lifting)
Max Takeoff Weight: 175 kg (spray, 2 nozzles) / 177 kg (spray, 4 nozzles) / 175 kg (spreading) / 165 kg (lifting)
Max Diagonal Wheelbase: 2330 mm
Dimensions (Unfolded): 3220 × 3224 × 975 mm
Dimensions (Arms Unfolded): 1820 × 1840 × 975 mm
Dimensions (Folded): 1105 × 1265 × 975 mm
Hovering Accuracy (RTK): ±10 cm horizontal / ±10 cm vertical
Hovering Accuracy (Non-RTK): ±0.6 m horizontal / ±0.3 m vertical
Max Flight Radius: 2 k
Max Wind Resistance: <6 m/s
Operating Temperature: 0–40°C
Propulsion System
Stator Size: 155 × 16 mm
KV: 60 rpm/V
Propeller Material: Carbon Fiber Composite
Propeller Dimensions: 62 inches
Propeller Quantity: 8 pairs
Dual Atomizing Spraying System
Spray Tank Material: HDPE
Spray Tank Volume: 100 L
Operating Payload: 100 kg
Sprinkler Models: LX07550SX (standard) / LX09550SX (optional mist)
Sprinkler Quantity: 2 (standard) / 4 (optional)
Nozzle Distance: 1834 mm
Droplet Size: 50–500 μm
Effective Spray Width: 5–13 m
Pump Type: Impeller Pump (Magnetic Drive)
Pump Quantity: 2
Max Flow Rate: 30 L/min (2 nozzles) / 40 L/min (4 nozzles)
Spreading system
Tank Volume: 150 L
Max Load: 100 kg
Discharge Structure: Screw Feeder
Spreader Structure: Centrifugal Disc
Max Discharge Rate: 400 kg/min
Effective Spreading Width: 3–10 m
Compatible Material Diameter: 0.5–10 mm
Phased Array Radar System
Millimetre Wave Radar EIRP: <20 dBm
Front Radar FOV: 360° horizontal / ±45° vertical
Downward Radar FOV: ±12.5° lateral / ±22.5° fore-aft
Rear Radar FOV: ±45° all
Laser Radar FOV: 272° vertical / 60° horizontal
Measurement Range: ≤60 m
Effective Safe Avoidance Speed: ≤13.8 m/s
Effective Obstacle Avoidance Height: ≥1.5 m
Safe Distance: 2.5 m
Operating Temperature: 0–40°C
Binocular Vision System
Vision FOV: 360° horizontal / 180° vertical
FPV FOV: ±86° horizontal / 108° vertical
Remote Controller
Screen: 7-inch LCD
Resolution: 1920 × 1200
Brightness: 1400 cd/m²
Internal Battery Runtime: 3.8 hours
External Battery Runtime: 3.2 hours
Charging Type: USB-C (max 65 W)
Charging Time: 2 hours
Intelligent Flight Battery
Weight: 14.7 ± 0.3 kg
Capacity: 41,000 mAh
Nominal Voltage: 52 V
Relay
Weight: 630 g
Battery Capacity: 6,500 mAh
Operating Time: 5 hours
Effective Signal Range: 5 km (SRRC) / 8 km (FCC)
Ingress Protection: IP55
Charging Time: 2.5 hours
Notes
- Data was measured at sea level. The payload weight is greatly affected by the ambient temperature and altitude. The payload weight needs to be reduced accordingly for every 1,000 m increase in altitude. The DJI Agras app will recommend the payload weight according to the current status and surroundings of the aircraft. When adding materials, the maximum weight should not exceed the recommended value, otherwise flight safety may be compromised.
- The spray width of the spraying system depends on the operating scenario and demand for coverage evenness.
- The spread width of the spreading system depends on the operating scenario and demand for coverage evenness.
- The effective sensing range and its ability to avoid and bypass obstacles will vary depending on the ambient light, rain, fog, and the material, position, shape, and other properties of the obstacles. Downward sensing mainly assists in Terrain Follow and Altitude Hold. The sensing in other directions is used for Obstacle Avoidance.
- 5.8 GHz frequency is unavailable in some countries. Check local regulations for more information.
- Use chargers or external power supplies that meet the specifications. Otherwise, the device may not work normally.
- The protection rating may be reduced due to improper use and damage caused by external forces or environmental factors.
- The actual power and voltage may vary according to local regulations.
- Measured using RON 92 gasoline at near sea level with an ambient temperature of 25°C, while charging at 9 kW.
- The DJI Agras app will intelligently recommend the payload weight limit for the spread tank according to the current status and surroundings of the aircraft. DO NOT exceed the recommended payload weight limit when adding material to the spread tank. Otherwise, flight safety may be affected.
- The lifting system cable length and load capacity may vary depending on operating conditions and configuration. Refer to the DJI Agras T100 user manual for full lifting system operating guidelines.
