DJI T70P AGRAS Agricultural Spray Drone Kit

DJI T70P AGRAS Agricultural Spray Drone Kit

Packages From $42,899.00 NZD
Packages From $42,899.00 NZD
Sale Sold out
Enquire Now

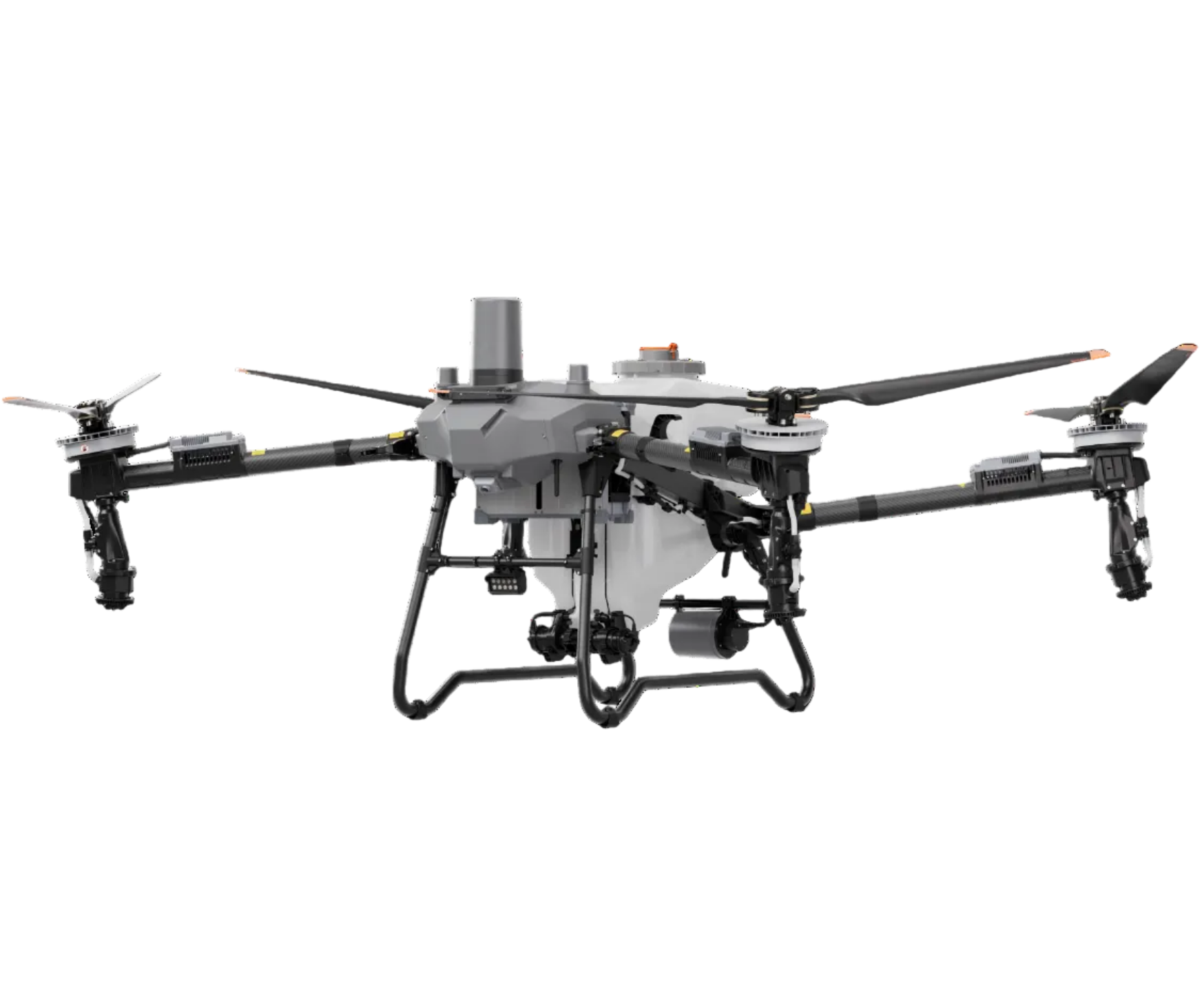

The DJI Agras T70P is DJI's newest agricultural drone, running a quad-rotor propulsion system with up to 70 kg payload capacity for spraying and spreading. It comes with Safety System 3.0, combining millimetre wave radar and Tri-eye Visionary Intelligence for all-round obstacle sensing at speeds up to 13.8 m/s.

Spray flow rate reaches 40 L/min with the optional 4-nozzle setup, and the Spreading System 4.0 handles granules from 0.5 mm to 10 mm at up to 400 kg/min. Two battery options - the DB1580 and higher-capacity DB2160 - let you match runtime and takeoff weight to the job, with fast charging down to 7-9 minutes using the D14000iE generator or C12000 smart charger.

View full details

Get your DJI T70P.

Call Murdoch on 0223125408 or fill out the form below to secure your DJI T70Pwith Aerolab!

First Name
Last Name

Learn more about the DJI T70P.

Features

Some of the features of the DJI T70P Agras.

Heavy Payload: Spray and spread on the same airframe, up to 70 kg operating payload.

Dual Battery Options: Run the DB1580 (30000 mAh) or DB2160 (41000 mAh) depending on the runtime and takeoff weight you need.

Fast Charging: DB1580 charges 30-95% in 7-8 minutes, DB2160 in 8-9 minutes, using the D14000iE generator or C12000 smart charger.

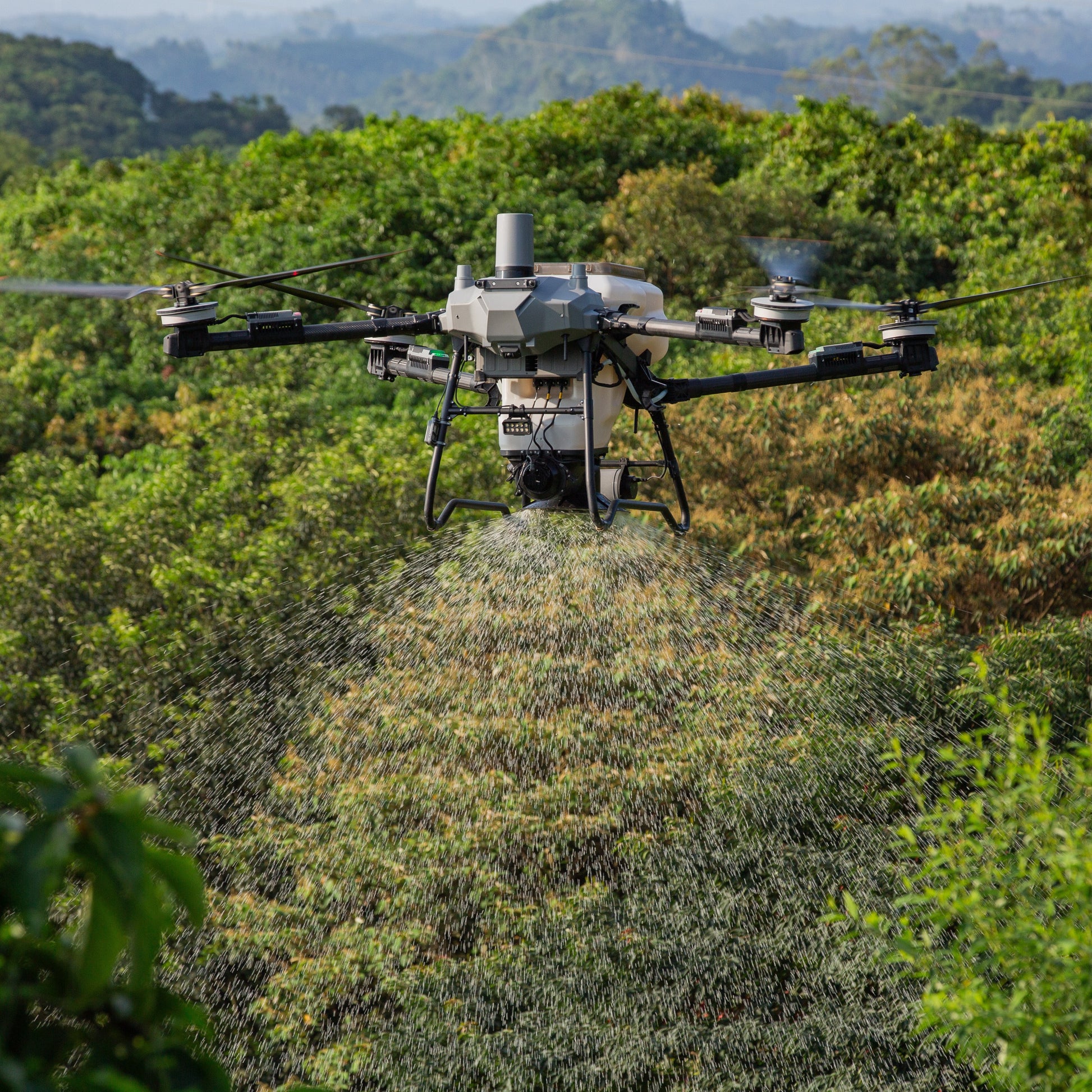

High Flow Rate Spraying: Up to 40 L/min with the optional 4-nozzle setup, spray width 4-11 m.

Spreading System 4.0: Interchangeable augers handle granules from 0.5 mm to 10 mm, discharge rate up to 400 kg/min, spreading width 3-10 m.

Safety System 3.0: Millimetre wave radar and Tri-eye Visionary Intelligence sense obstacles up to 60 m, safe at speeds up to 13.8 m/s.

2 km Flight Radius: Stable signal transmission for large-scale operations.

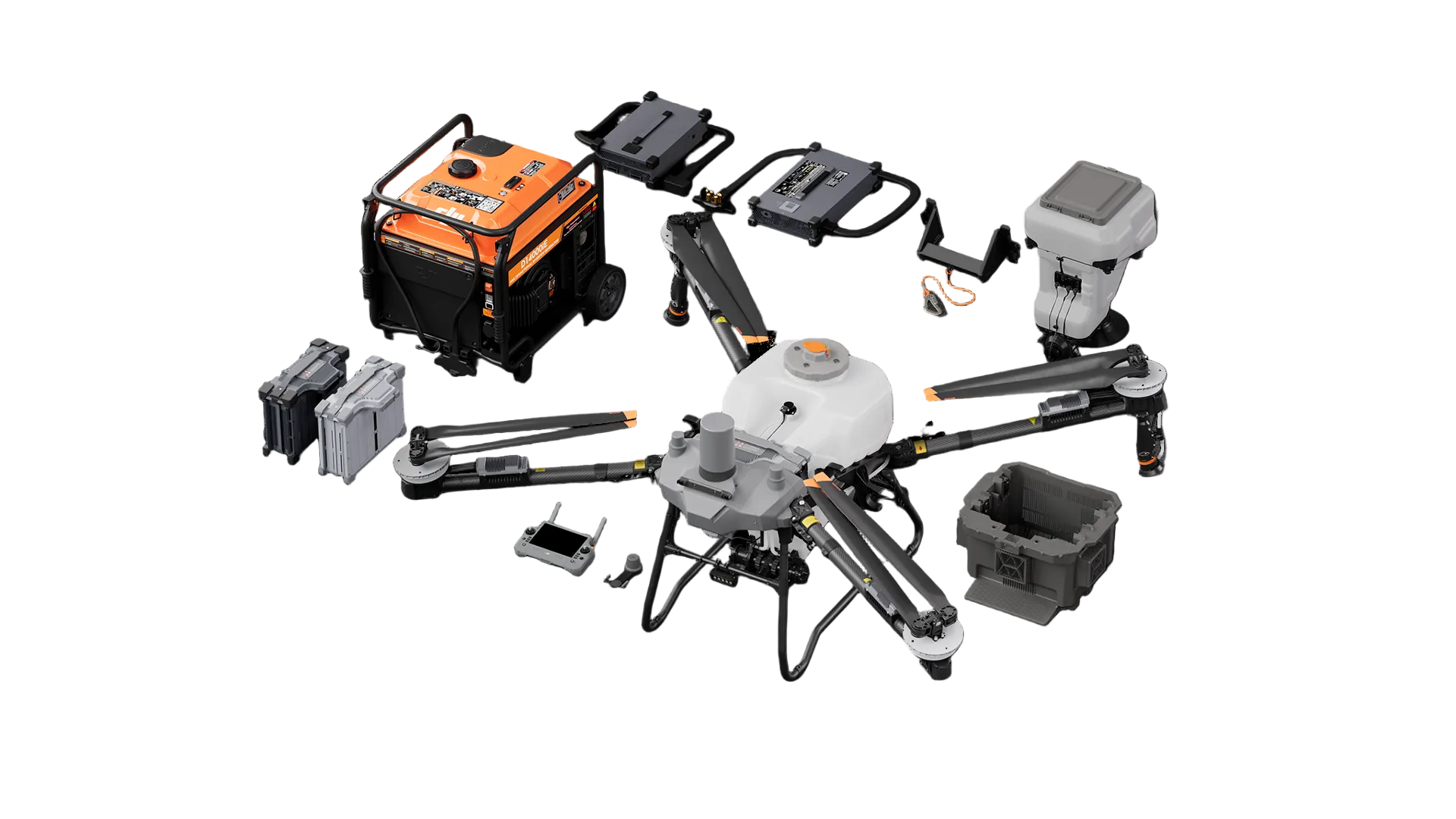

Our Kit Includes

DJI Agras T70P Three Battery Combo (No Charger) - T70P_COMBO

DJI Agras T70P × 1
DJI 65W Portable Charger (NZ) × 1
DJI DB2160 Intelligent Flight Battery × 3
DJI WB37 Intelligent Battery × 1

Note: this combo does not include a flight battery charger or generator. A C12000 Smart Charger or D14000iE Generator is required separately to charge the DB2160 batteries.

Why DJI T70P?

The DJI Agras T70P is DJI's newest agricultural drone, built to spray and spread up to 70 kg on one airframe. It runs a quad-rotor propulsion system paired with Safety System 3.0, combining millimetre wave radar and Tri-eye Visionary Intelligence for all-round obstacle sensing. With two battery options and charging as fast as 7-9 minutes, the T70P is built for high-volume operations across spraying and spreading jobs.

Certifications Required

As part of the Aerolab service we work with you to ensure your business and pilot(s) get all the certifications required to operate your drone successfully.

Here is the list of Qualifications the Pilot requires to to operate the DJI T70P:

  • RPAS Pilot Certification (Part 102)
  • Chemical Handling Qualification
  • UAV Ag Rating
  • Operational Competency Assessment (OCA)

The Pilot will also need to be flying under a Civil Aviation Authority (CAA) approved Part 102 Unmanned Aircraft Operating Certificates (UAOC) issued to a Limited Liability Company.

Click Here to learn more about compliance.

Product Specifications

Aircraft

  • Weight: 52 kg (with DB1580 battery) / 56 kg (with DB2160 battery)
  • Max takeoff weight: Spraying 102 kg (2 nozzles) / 105 kg (4 nozzles) with DB1580; 126 kg (2 nozzles) / 130 kg (4 nozzles) with DB2160. Spreading: 126 kg (DB1580) / 130 kg (DB2160)
  • Max diagonal wheelbase: 2440 mm
  • Dimensions: 3200 × 3520 × 960 mm (unfolded) / 1820 × 2100 × 960 mm (arms unfolded, props folded) / 1160 × 900 × 960 mm (fully folded)
  • Hovering accuracy: RTK enabled ±10 cm (horizontal & vertical); RTK disabled ±0.6 m horizontal, ±0.3 m vertical
  • Max configurable flight radius: 2 km
  • Operating temperature: 0°C to 40°C
  • Max wind resistance: <6 m/s

Propulsion System

Motors

  • Stator size: 155 × 22 mm
  • KV: 65 rpm/V

Propellers

  • Material: Carbon fiber composite
  • Dimensions: 62 inches
  • Quantity: 4

Dual Atomizing Spraying System

Spray Tank

  • Material: HDPE
  • Volume: 70 L
  • Operating payload: 70 kg

Spraying System - Sprinklers

  • Model: LX07550SX (standard) / LX09550SX (optional mist nozzle)
  • Quantity: 2 standard / 4 optional
  • Nozzle distance: 1874 mm (rear nozzles)
  • Droplet size: 50-500 μm
  • Effective spray width: 4-11 m

Spraying System - Delivery Pumps

  • Type: Impeller pump (magnetic drive)
  • Quantity: 2
  • Max flow rate: 30 L/min (2 sprays standard) / 40 L/min (4 sprays optional)

Spreading system

  • Compatible material diameter: Extra-large auger 0.5-10 mm (fertiliser, wheat, feed) / medium auger 4-6 mm (rice) standard; large auger 4-10 mm / small auger 0.5-4 mm optional
  • Spreading tank volume: 100 L
  • Spreader structure: Centrifugal disc
  • Discharge structure: Feeder feeding
  • Max discharge rate: 400 kg/min (compound fertiliser)
  • Max load in spreading box: 70 kg
  • Effective spreading width: 3-10 m

Phased Array Radar System

Binocular Vision System

Remote Controller

  • Model: TKPL 2
  • Screen: 7-inch LCD touchscreen, 1920×1200 resolution, 1400 cd/m² brightness
  • Storage Temperature Range: less than 1 month -30° to 45°C; 1-3 months -30° to 35°C; 3-12 months -30° to 30°C
  • Charging Temperature: 5° to 40°C
  • Internal Battery Runtime: 3.8 hours
  • External Battery Runtime: 3.2 hours
  • Charging Type: USB-C fast charger, max 65 W (20 V). DJI Portable Charger recommended
  • Charging Time: 2 hours for internal battery (remote controller off, standard DJI charger)

Intelligent Flight Battery

  • DB1580 Intelligent Flight Battery: Weight 11.7 ± 0.3 kg, Capacity 30000 mAh, Nominal Voltage 52 V
  • DB2160 Intelligent Flight Battery: Weight 14.7 ± 0.3 kg, Capacity 41000 mAh, Nominal Voltage 52 V

Relay

Model: RL01-65
Dimensions: 120×110×100 mm
Weight: ≤575 g
Input Voltage [6]: 9 V3 A / 12 V2.5 A / 15 V2 A
Power Consumption: 9 W (SRRC), 12 W (FCC)
Capacity: 6500 mAh
Operating Time: 4 hours
Operating Frequency [5]: 2.4000-2.4835 GHz, 5.725-5.850 GHz
Max Transmission Distance: 5 km (SRRC), 4 km (MIC/KCC/CE), 7 km (FCC)
(unobstructed, free of interference, and at a flight altitude of 2.5 m)
Charging Time: 2 hours and 20 minutes (when using a standard DJI charger)
IP Rating [6]: IP55

Notes

[1] Measured at sea level. The DJI Agriculture App will intelligently recommend the loading weight based on the current aircraft status, environmental conditions and operational tasks. Do not exceed the recommended maximum loading weight, as it may affect flight safety.
[2] The effective spray width of the spraying system depends on the actual working scene.
[3] Working height 3 m, disc rotation speed 1100 rpm, uniformity requirement (CV<30%), measured broadcast width 10 m. The faster the disc rotation speed and the higher the flight altitude, the larger the broadcast width.
[4] Includes the weight of ropes and hooks. Measured at sea level. The DJI Agriculture App will intelligently recommend the loading weight based on the current state of the aircraft, environmental conditions and operational tasks. Do not exceed the recommended value, as it may affect flight safety.
[5] Effective sensing distance, obstacle avoidance and bypassing capability may vary due to environmental lighting, rain, fog, and the material, location and shape of the object. Downward sensing assists terrain-following altitude flight; sensing in other directions is used for obstacle avoidance.
[6] Sea level height, ambient temperature 15-40°C, time to charge from 30% to 95%. Fast charging is supported when battery cell temperature is 15-75°C. Charging time varies depending on input power, altitude, initial charge level and other factors.
[7] Positioning accuracy and reliability are affected by equipment tilt, signal obstruction, multipath, number of satellites, geometric distribution and atmospheric conditions. Set up equipment in open areas, away from electromagnetic interference and multipath environments.
