TopXGun FP700 Agricultural Spray Drone
TopXGun FP700 Agricultural Spray Drone
The FP700 is built to cover ground. With a 60L spray tank, four 10kW motors, and a rated take-off weight of 119.6kg, the FP700 handles big spray runs without fuss. Terrain-following radar keeps it locked to the slope. 4D obstacle avoidance steers it around whatever's in the way. RTK precision means it goes exactly where you tell it. This is TopXGun's flagship spray drone, and it's supported in New Zealand by Aerolab - local parts, local service, one phone number.
Get your TopXGun FP700.
Call Murdoch on 0223125408 or fill out the form below to secure your TopXGun FP700 with Aerolab!
Collapsible content
Features
60L Spray Tank
High-volume capacity per flight — fewer refills, more coverage per run.

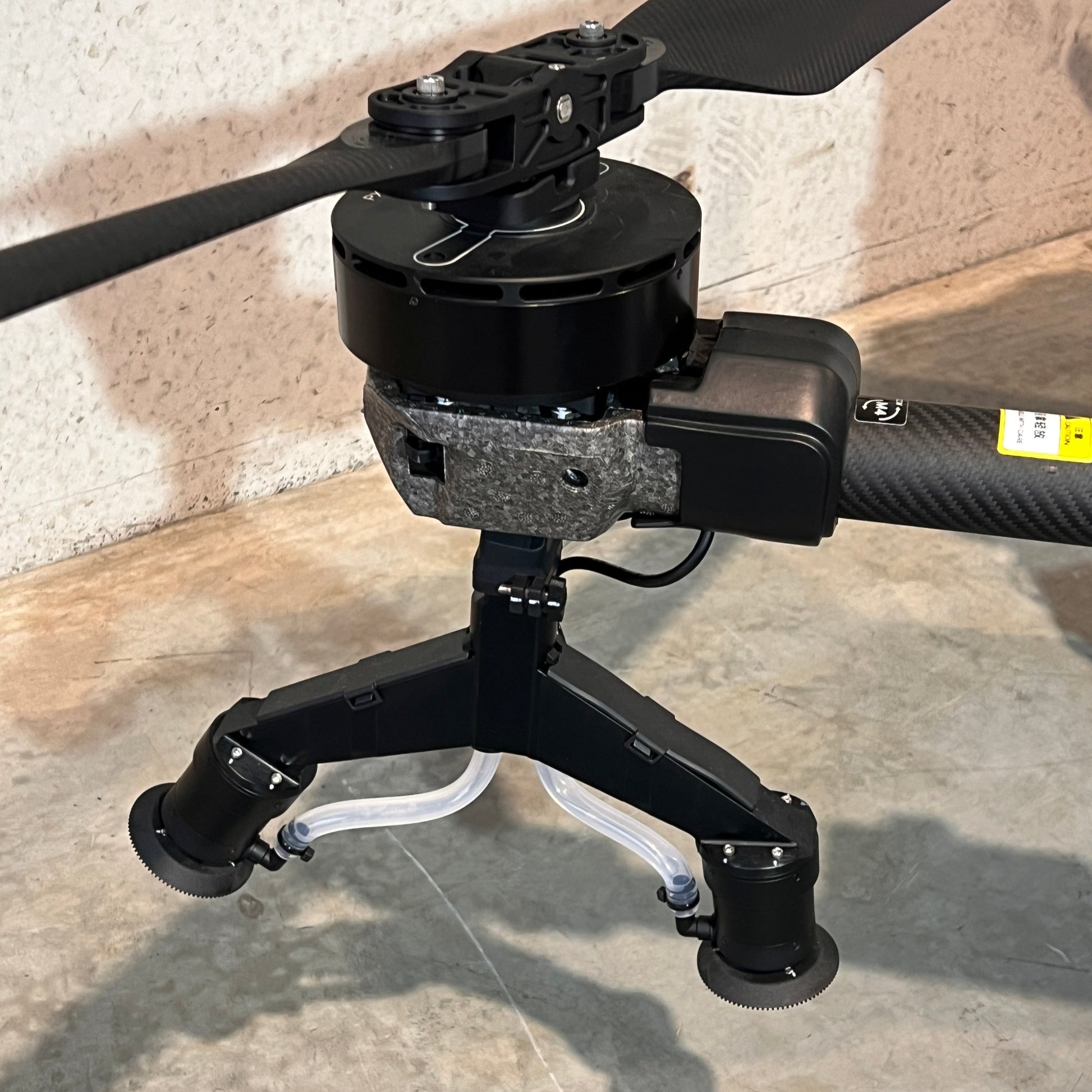

Rear-Mounted Centrifugal Nozzles + 40L/min Pump
Fast, precise application with flow rate accuracy within ±5% and droplet atomisation between 30–500µm — consistent coverage, less drift, less waste.
SP6 Dual-Roller Centrifugal Spreader
80L hopper. Spreads at up to 220kg/min across widths up to 10m. Fertiliser, seed, or bait — covers large areas fast.

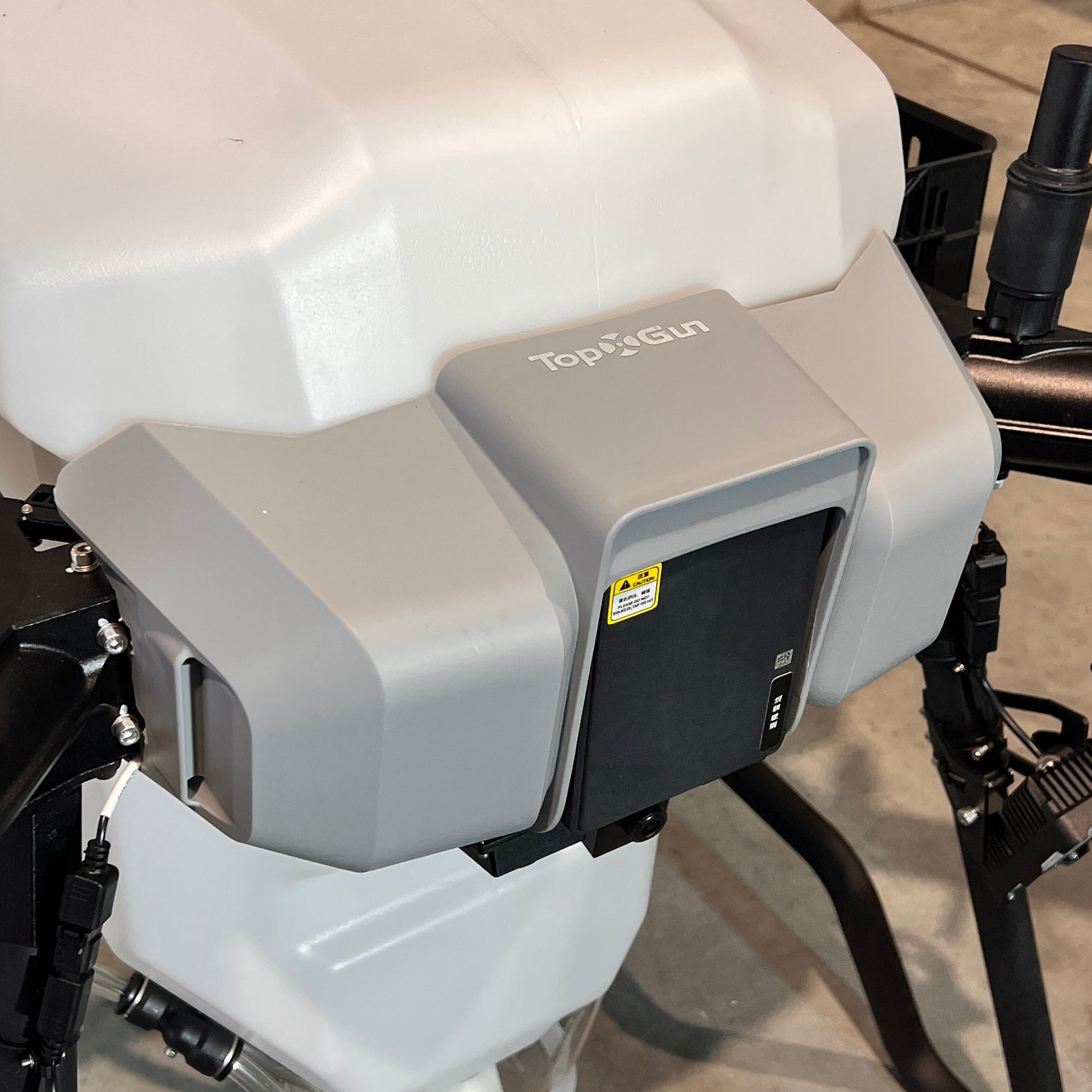

Automotive-Grade 4D Radar Obstacle Avoidance (150m Range)
Detects and routes around obstacles at speeds up to 13.8m/s — safe in orchards, hill country, or complex terrain.
Built-in HD Mapping Camera
Maps up to 13.5ha per mission in real time. Fully autonomous flight — better planning, better monitoring, less manual effort.
Dual 20Ah Batteries with Mutual Backup + 9,000W Dual-Channel Air-Cooled Charger
Hot-swap between batteries for continuous operation. Fast recharge keeps you in the field.
70kg Max Payload + 2km Operational Radius
Heavy-lift capability across extended coverage areas — without repositioning base gear on remote or expansive blocks.
Aviation-Grade Aluminium Frame with IP67 Rating
Corrosion-resistant, dust and waterproof, built to take knockbacks — performs in tough NZ ag conditions.
Modular Design with Built-in UPS System
Tool-free maintenance. Instant mid-mission battery swap. Less downtime, more operational hours.
Agri Assistant App with Night Mode
Full-colour FPV at night, intuitive mission planning — flexible operations across all hours.

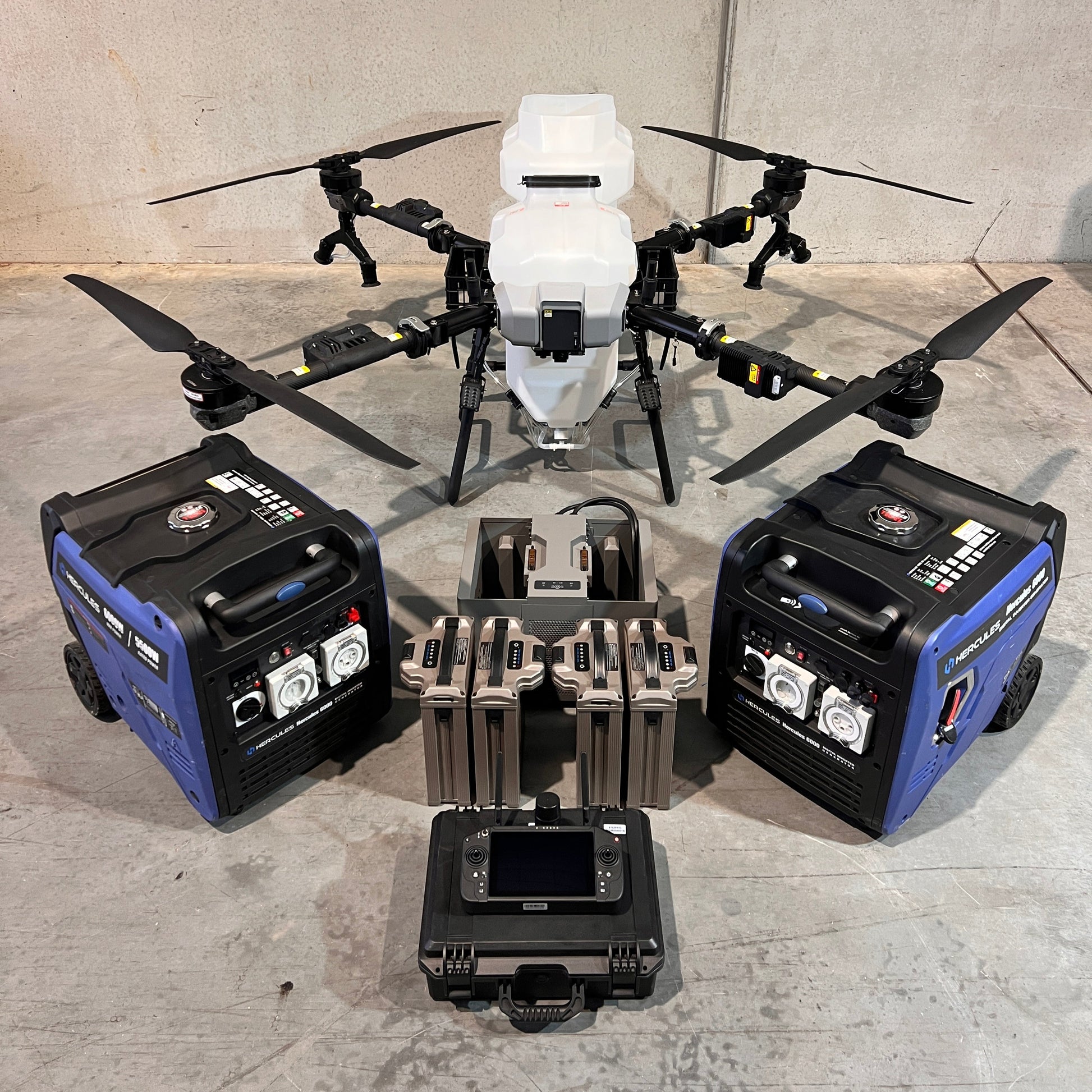

Our Kit Includes
- TopXGun FP700 Agricultural Drone × 1
- ZAB1420-03 20Ah Intelligent Flight Battery × 4

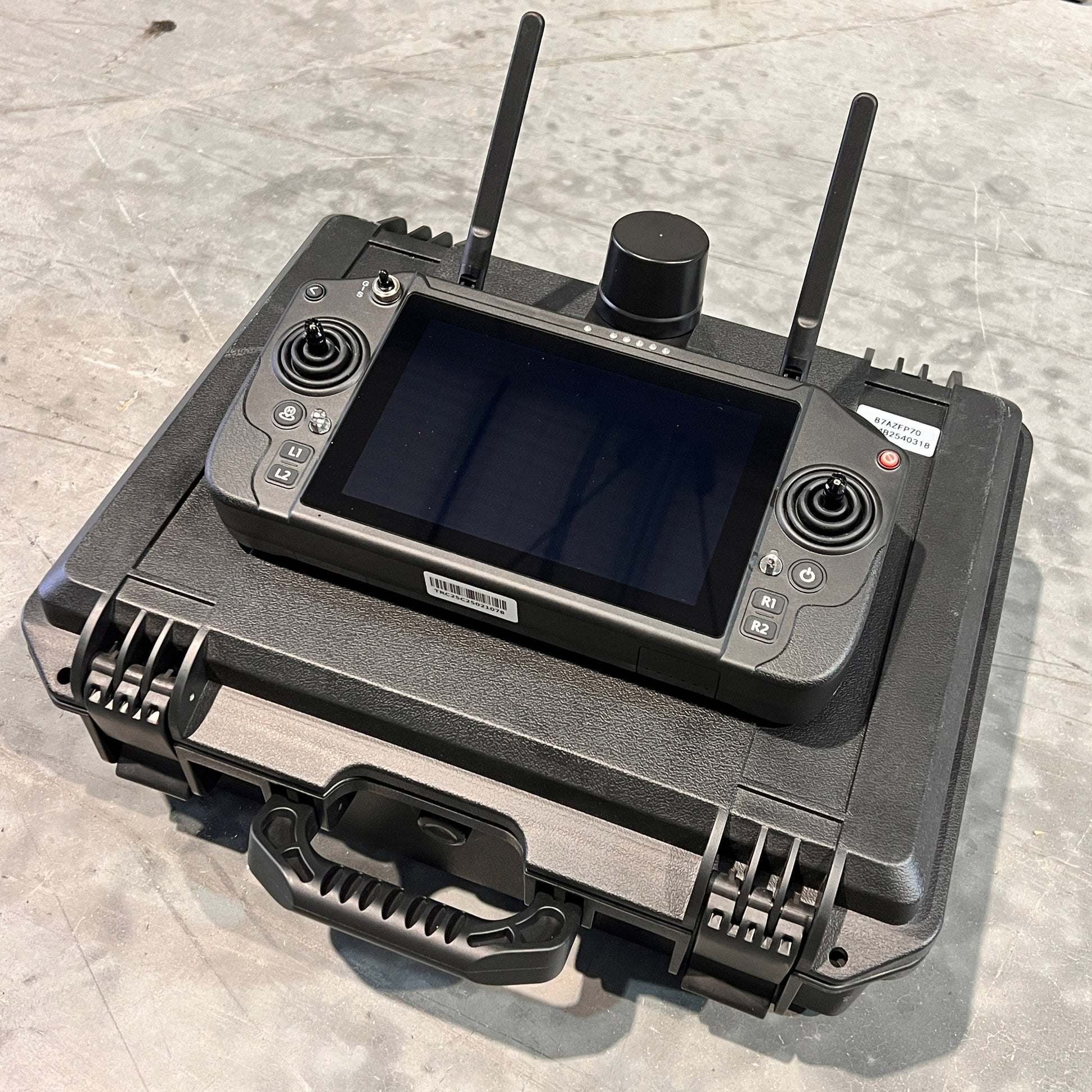

- TC2S Remote Controller × 1
- TC9002P 9kW Dual-Channel Smart Charger × 1
- 10kW Generator × 1 (Not Included in this price)
Why TopXGun FP700?
The FP700 is TopXGun's most capable agricultural spray drone - and at 119.6kg rated take-off weight, it's built for operations that need throughput, not just capability. A 60L tank with dual peristaltic pumps at 20L/min means real coverage per run. Terrain-following radar and 4D obstacle avoidance handle the hard country without asking the operator to work twice as hard. Add the optional SP6 spreading system and the same airframe handles fertiliser and seed runs. The 1,000-cycle battery rating means the gear keeps working season after season. Every FP700 sold through Aerolab comes with local servicing, parts on the shelf, and a training pathway through Drone Trust NZ.
Certifications Required
As part of the Aerolab service we work with you to ensure your business and pilot(s) get all the certifications required to operate your drone successfully.
Here is the list of Qualifications the Pilot requires to to operate the TopXGun FP700:
- RPAS Pilot Certification (Part 102)
- Chemical Handling Qualification
- UAV Ag Rating
- Operational Competency Assessment (OCA)
The Pilot will also need to be flying under a Civil Aviation Authority (CAA) approved Part 102 Unmanned Aircraft Operating Certificates (UAOC) issued to a Limited Liability Company.
Click Here to learn more about compliance.
Product Specifications
Aircraft
Weight (spray mode, with battery): 59.6 kg
Weight (spreading mode, with battery): 61.5 kg
Max Takeoff Weight (spray): 119.6 kg
Max Takeoff Weight (spreading): 131.5 kg
Symmetrical Motor Wheelbase: 2200 mm
Arm Length: 850 mm
Hovering Accuracy (RTK): ±10 cm horizontal / ±10 cm vertical
Hovering Accuracy (GNSS): ±1.0 m horizontal / ±0.5 m vertical
Hovering Accuracy (Radar): ±0.1 m vertical
Max Flight Speed: 13.8 m/s
Max Take-off Altitude: 2000 m
Recommended Operating Temperature: 0–40°C
Propulsion System
Motor Model: PX60
Stator Dimension: 136 × 30 mm
KV: 68 rpm/V
Power (per motor): 10 kW
Max Thrust (per motor): 59 kg
Number of Motors: 4
ESC Operating Voltage: 51.8V (14S LiPo)
ESC Rated Current: 350 A
Propeller Diameter: 56 inch (1426 mm)
Spraying System
Tank Capacity: 60 L
Pump Type: Metering peristaltic
Number of Pump Channels: 2
Max Flow Rate: 20 L/min (single pump)
Spray Range: 6–10 m
Atomisation Particle Size: 30–500 µm
Nozzle Protection: IP67
Max Atomisation Capacity: 10 L/min (single nozzle)
SP6 Spreading System
Tank Capacity: 80 L
Max Payload: 70 kg
Feeding Mode: Rolling feeder
Spreading Mode: Centrifugal disc
Spread Range: 5–10 m
Operating Temperature: 0–40°C
Radar System
Terrain Following Range: 1–30 m
Terrain Detection Accuracy: 0.1 m
Obstacle Detection Range: 1–150 m
Safe Distance: 4.0 m
Avoidance Direction: Front (left, right, above)
Autonomous Obstacle Avoidance: Supported
Protection Level (both systems): IP67
FPV Camera
FOV: 86° horizontal / 52° vertical
Max Resolution: 1080P
Remote Controller
Operating Frequency: 2.4–2.4835 GHz
Max Signal Range (clear): 10 km
Max Signal Range (crop environment): 3 km
RTK Mapping Accuracy: ±0.1 m horizontal / ±0.1 m vertical
Screen Size: 7 inch
Battery Capacity: 20,000 mAh
Battery Life: 6–9 hours
Intelligent Flight Battery
Voltage: 53.2 V
Capacity: 20,000 mAh
Discharge Rate: 10C
Charge Rate: 5C
Battery Life: 1,000 cycles
Weight (pair, in flight): 8.0 kg
Charger
Input Voltage: AC 220–240 V
Input Frequency: 50/60 Hz
Output Voltage: DC 61.0 V (max)
Output Current: 165 A (max)
Output Power: 9000 W (max)
Channels: Dual
Net Weight: 18.7 kg
