C10000 Intelligent Power Supply

DJI C10000 Intelligent Power Supply

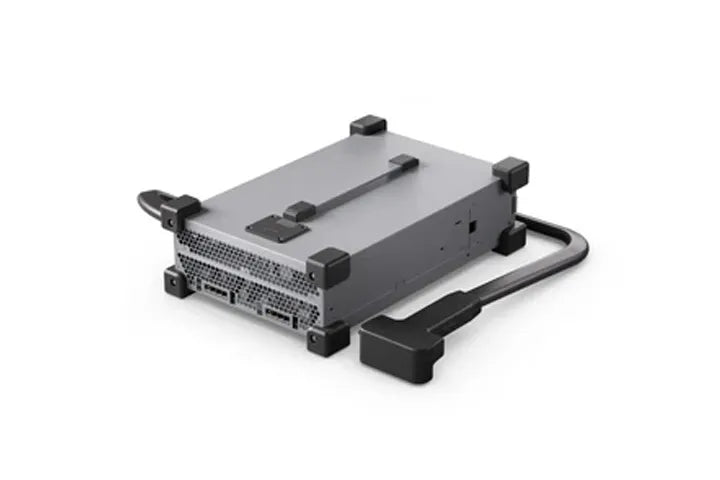

The DJI C10000 Intelligent Power Supply is a high-performance charging solution designed for DJI AGRAS intelligent flight batteries. Built for agricultural drone operations, it provides rapid battery charging, intelligent power management, and multiple safety protection features to support efficient field workflows and minimise operational downtime.

Features:

• Genuine DJI intelligent power supply
• Designed for DJI AGRAS agricultural drone batteries
• Supports high-power fast charging for reduced downtime
• Intelligent charging management automatically adjusts charging performance
• Built-in protection systems for safe and reliable operation
• Supports over-current, over-voltage, under-voltage, overheating, and short-circuit protection
• Self-diagnostic function with status indicators
• Compact and durable design for field operations
• Suitable for professional agricultural drone charging environments

Specifications:

• Model: CSX702-9500
• Compatibility: DJI DB1560, DB800, T40, T30, and T20P Intelligent Flight Batteries
• Input Voltage:
  • 220–240 V AC, 50/60 Hz, 24 A max
  • 100–120 V AC, 50/60 Hz, 16 A max
• Output Voltage: 59.92 V DC max
• Output Current:
  • Up to 175 A (220–240 V input)
  • Up to 60 A (100–120 V input)
• Maximum Output Power:
  • 9000 W (220–240 V input)
  • 3000 W (100–120 V input)
• Output Channels: 1
• Operating Temperature: -5°C to 40°C
• Dimensions: 400 × 266 × 120 mm
• Weight: Approx. 11.4 kg
• Application: Fast charging of DJI AGRAS intelligent flight batteries
