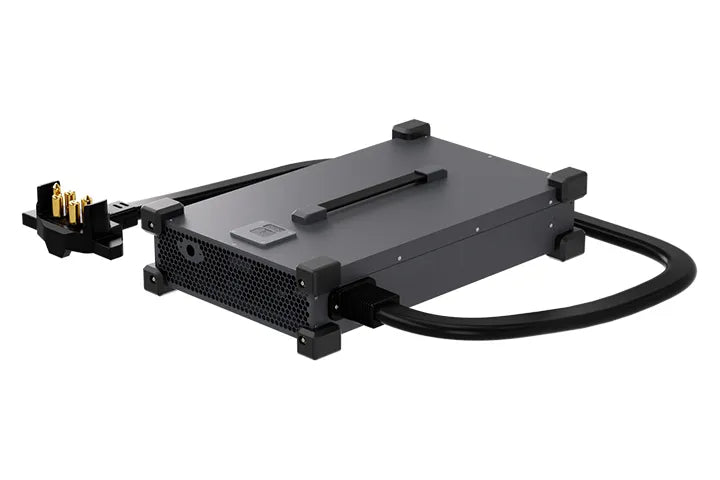

DJI C12000 Intelligent Power Supply (EMC)

The DJI C12000 Intelligent Power Supply (EMC) is a high-performance fast charger engineered for DJI AGRAS intelligent flight batteries. Featuring a powerful 12,000 W tri-phase charging system, adaptive protection functions, and a rugged industrial design, it delivers rapid, reliable battery charging to minimise downtime and maximise productivity during demanding agricultural operations.

Features:

• Genuine DJI intelligent power supply
• Ultra-fast 12,000 W charging capability
• Tri-phase AC input for maximum charging performance
• Supports single-phase operation where required
• Adaptive protection against over-temperature, over-voltage, under-voltage, short circuit, and fan stall
• Durable 1.8 m charging cable for flexible field use
• Designed for rapid, reliable charging in demanding agricultural environments
• Compatible with DJI DB1580 and DB2160 Intelligent Flight Batteries

Specifications:

• Model: CSX901-12000
• SKU: C12000
• Compatibility: DJI DB1580 / DB2160 Intelligent Flight Batteries
• Input Voltage: Three-phase AC 175–520 V; Single-phase AC 200–264 V
• Output Voltage: 62 V
• Rated Output Current: 194 A
• Rated Power: 12,000 W (three-phase 380 V input); 3,000 W (single-phase 220 V input)
• Recharge Time: Approximately 8–9 minutes (30%–95% charge, DB2160 battery)
• Protection Functions: Over-temperature, over-voltage, under-voltage, short circuit, fan stall, and other safety protections
• Operating Temperature: 0°C to 40°C
• Output Channels: 1
• Dimensions: 456 × 291 × 107 mm
• Weight: 13.13 kg
