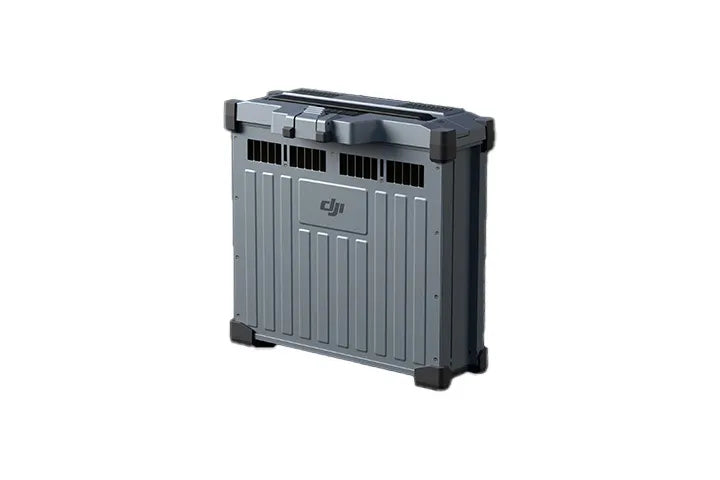

DB1580 Intelligent Flight Battery

DJI Agras DB1560 Intelligent Flight Battery

The DJI Agras DB1560 Intelligent Flight Battery is a high-capacity lithium battery designed for DJI AGRAS agricultural drones. Engineered for demanding commercial spraying and spreading operations, it delivers 1,567 Wh of energy, rapid charging capability, and intelligent battery management to maximise productivity while providing reliable performance and long service life in the field.

Features:

• Genuine DJI intelligent flight battery
• Designed for DJI AGRAS agricultural drones
• High-capacity 30,000 mAh lithium battery
• 1,567 Wh energy capacity for extended operating time
• Supports ultra-fast charging up to 9,500 W
• Intelligent Battery Management System (BMS)
• Real-time battery health and status monitoring
• Automatic cell balancing for improved battery longevity
• Built-in protection against over-voltage, over-current, overheating, and short circuits
• Quick installation and removal for fast battery swaps
• Rugged design suitable for demanding agricultural environments
• Up to 1,500 charge cycles under normal operating conditions

Specifications:

• Model: DB1560 Intelligent Flight Battery (BAX702-30000mAh-52.22V)
• Compatibility: DJI AGRAS T50, T40, T25, T30 (reduced payload), and T20P
• Battery Type: Intelligent lithium battery
• Capacity: 30,000 mAh
• Energy: 1,567 Wh
• Nominal Voltage: 52.22 V
• Maximum Charging Input Power: 9,500 W
• Maximum Charge Rate: 6 C
• Maximum Discharge Rate: 11.5 C
• Weight: Approx. 12.1 kg
• Operating Temperature: -5°C to 45°C
• Charging Temperature: 0°C to 60°C
• Protection Rating: IP54
• Battery Management: Intelligent monitoring, cell balancing, self-diagnostics, and auto-discharge
• Application: Power source for DJI AGRAS agricultural spraying and spreading operations with rapid field charging capability
