DJI C8000 INTELLIGENT BATTERY STATION

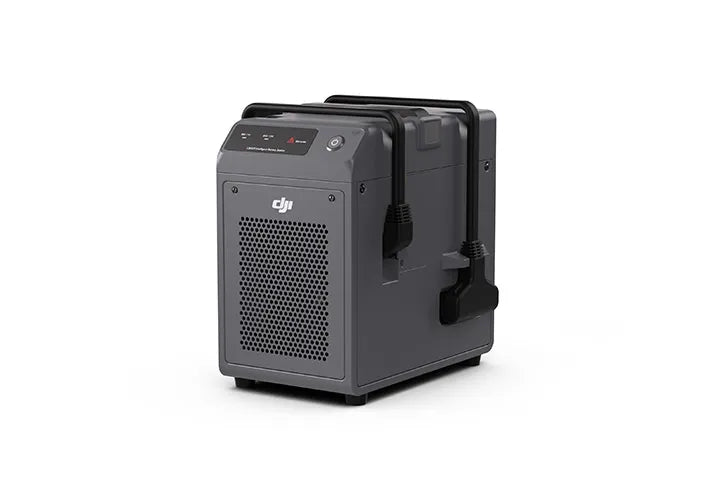

DJI C8000 Intelligent Battery Station

The DJI C8000 Intelligent Battery Station is a high-performance charging solution designed for DJI AGRAS intelligent flight batteries. Built for professional agricultural drone operations, it supports simultaneous dual-battery charging or ultra-fast charging of a single battery, helping maximise productivity and minimise downtime during spraying and spreading operations. Intelligent charging management and comprehensive safety protection ensure reliable performance in demanding field environments.

Features:

• Genuine DJI intelligent battery station
• Designed for DJI AGRAS intelligent flight batteries
• Supports concurrent charging of two batteries
• Fast charging for a single battery with up to 7,200 W output
• Adaptive charging voltage compatible with standard generators
• Intelligent charging management for efficient battery performance
• Built-in protection against overheating, over-voltage, under-voltage, short circuits, and fan stall
• Connector protection for enhanced charging safety
• Rugged design for professional agricultural operations
• Ideal for reducing battery turnaround time in the field

Specifications:

• Model: CHX101-7000
• Compatibility: DJI AGRAS DB1560 Intelligent Flight Batteries
• Input Voltage: 90–264 V AC
• Output Voltage: 42–59.92 V DC
• Maximum Output Power:
  • 7,200 W (Dual AC input)
  • 3,600 W (Single AC input)
• Output Channels: 2
• Charging Modes: Dual battery simultaneous charging or single battery fast charging
• Protection Features: Overheat, over-voltage, under-voltage, short circuit, fan stall, and connector protection
• Operating Temperature: -20°C to 45°C
• Fast Charge Time: Under 10 minutes (dual 15 A power inputs)
• Normal Charge Time: Under 18 minutes (single 15 A power input)
• Application: Fast charging of DJI AGRAS intelligent flight batteries for professional agricultural drone operations
