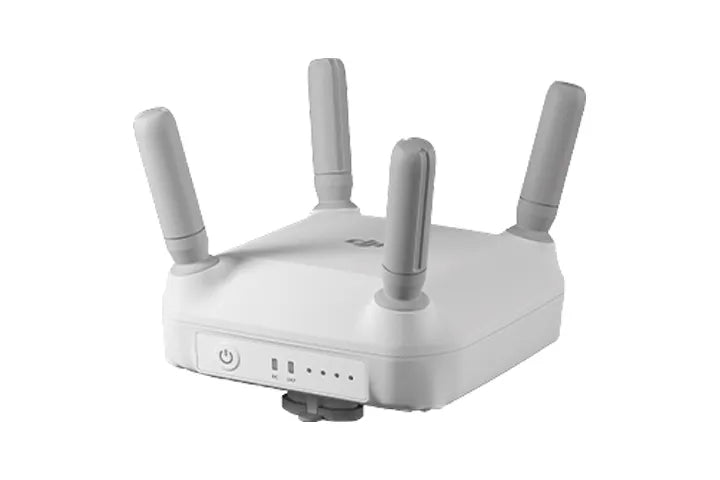

DJI O4 RELAY

DJI O4 Relay

The DJI O4 Relay is a signal transmission enhancement module designed to improve communication stability between DJI AGRAS aircraft and the remote controller in challenging operating environments. Acting as a relay link between the controller and aircraft, it helps overcome signal interference and terrain obstructions, providing more reliable connectivity during agricultural drone missions. It is especially useful when positioned above crop canopies or in areas where direct signal paths are limited.

Features:

• Genuine DJI O4 Relay communication module
• Enhances signal stability in areas with interference or obstacles
• Extends reliable communication between remote controller and aircraft
• Designed for DJI AGRAS agricultural drone operations
• Helps maintain stable connection in obstructed terrain
• Easy deployment for improved field communication performance
• Supports long-distance agricultural missions
• Compatible with DJI AGRAS T50, T70P, T100, and T20P aircraft

Specifications:

• Model: RL02-65
• SKU: O4RELAY
• Compatibility: DJI AGRAS T50, T70P, T100, and T20P
• Operating Frequency:
  • 2.4000–2.4835 GHz
  • 5.150–5.250 GHz
  • 5.725–5.850 GHz
• Maximum Transmission Distance:
  • FCC: 8 km
  • SRRC: 5 km
  • MIC/KCC/CE: 4 km
• Transmitter Power (EIRP):
  • 2.4 GHz: <33 dBm (FCC), <20 dBm (SRRC/CE/MIC)
  • 5.1 GHz: <21 dBm (FCC/NCC), <23 dBm (CE)
  • 5.8 GHz: <33 dBm (SRRC/FCC), <14 dBm (CE)
• Power Consumption: 10 W
• Battery Type: Li-ion
• Battery Capacity: 6500 mAh
• In the Box: DJI O4 Relay × 1
