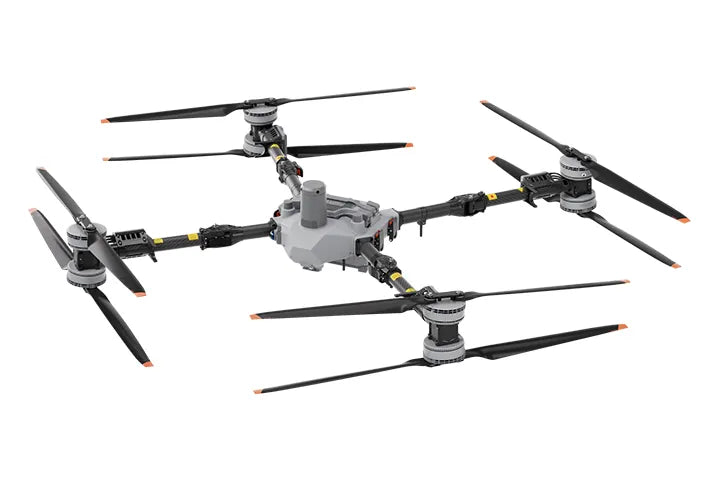

DJI T100 Intelligent Airframe

DJI T100 Intelligent Airframe

The DJI T100 Intelligent Airframe is the core aircraft platform of the DJI AGRAS T100 agricultural drone system. Designed for high-efficiency farming operations, it features a powerful propulsion system, robust airframe construction, advanced flight control technology, and support for multiple payload configurations including spraying, spreading, and lifting systems. Built for demanding agricultural environments, it provides reliable performance, precision operation, and flexibility across a wide range of applications.

Features:

• Genuine DJI AGRAS T100 intelligent airframe
• Modular design supporting spraying, spreading, and lifting applications
• High-strength airframe built for demanding agricultural operations
• Powerful propulsion system with large carbon fibre composite propellers
• Supports RTK precision positioning for accurate flight paths
• Advanced safety systems for improved operational reliability
• IP67-rated core module protection for enhanced durability
• Designed for large-scale crop spraying, spreading, and transport operations
• Compatible with DJI T100 agricultural accessories and payload systems

Specifications:

• Model: DJI AGRAS T100 Intelligent Airframe
• Compatibility: DJI AGRAS T100 spraying, spreading, and lifting systems
• Aircraft Weight:
  • Spraying: 75 kg (standard 2 nozzles)
  • Spreading: 75 kg (with spreading system)
  • Lifting: 65 kg (with lifting system)
• Maximum Takeoff Weight:
  • Spraying: 175 kg
  • Spreading: 175 kg
  • Lifting: 165 kg
• Maximum Diagonal Wheelbase: 2330 mm
• Dimensions:
  • Arms and propellers unfolded: 3220 × 3224 × 975 mm
  • Arms unfolded and propellers folded: 1820 × 1840 × 975 mm
  • Arms and propellers folded: 1105 × 1265 × 975 mm
• RTK Hovering Accuracy: ±10 cm horizontal / ±10 cm vertical
• Maximum Configurable Flight Radius: 2 km
• Operating Temperature: 0°C to 40°C
• Maximum Wind Resistance: <6 m/s
• Motor Stator Size: 155 × 16 mm
• Motor KV: 60 rpm/V
• Propeller Material: Carbon fibre composite
• Propeller Size: 62 inches
• Propeller Quantity: 8 pairs
• Protection Rating: IP67
