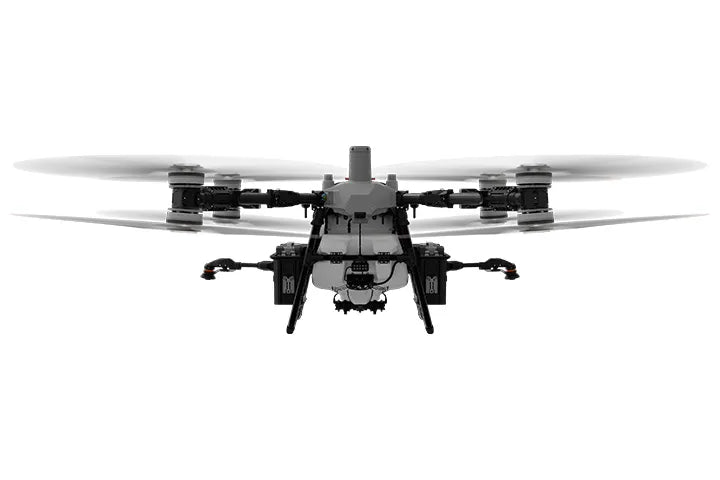

DJI T100 Spraying System with Air-Cooled Heat Sink

DJI T100 Dual-Battery Spraying System

The DJI T100 Dual-Battery Spraying System is a high-capacity spraying module designed for the DJI AGRAS T100 agricultural drone. Featuring a dual-battery powered design, advanced pumping technology, and high-flow spraying capability, it delivers efficient and precise liquid application for large-scale agricultural operations. Designed for demanding field environments, it helps maximise productivity with reliable performance and reduced operational downtime.

Features:

• Genuine DJI spraying system accessory
• Designed specifically for the DJI AGRAS T100
• Dual-battery system for enhanced spraying performance
• High-capacity 100 L spray tank
• Dual centrifugal atomising sprinklers for consistent coverage
• Magnetic drive impeller pumps for stable and reliable liquid delivery
• Supports high-flow spraying for large-scale operations
• Real-time flow monitoring for accurate application control
• Compatible with optional mist nozzle upgrades for improved canopy penetration
• Durable design for agricultural field applications

Specifications:

• Model: LS100
• Compatibility: DJI AGRAS T100
• Spray Tank Capacity: 100 L
• Operating Payload: 100 kg
• Sprinkler Type: Dual atomising centrifugal sprinklers
• Standard Nozzle Model: LX07550SX
• Optional Mist Nozzle Model: LX09550SX
• Droplet Size: 50–500 μm
• Effective Spray Width: 5–11 m
• Maximum Flow Rate: 30 L/min (standard 2 nozzles), 40 L/min (optional 4 nozzles)
• Pump Type: Magnetic drive impeller pump
• Pump Quantity: 2
• System Dimensions: 880 × 870 × 810 mm (spray rod folded), 1020 × 1930 × 810 mm (spray rod unfolded)
• Application: Agricultural spraying, crop protection, orchard and broadacre operations
• In the Box: DJI T100 Dual-Battery Spraying System × 1
